Recently, I have some chance to study about the FRRouting. At that time, I do not have any Linux server. Thus, I decide that I use AWS Spot instance. After installation, I set up the OSPFv2 environment with simple configuration. However I can not estabilish the OSPF neighbor.

1. Simple OSPFv2 Configuration of FRRouting

I have 2 hosts which is direct connected each other. In fact, these hosts are located in the same subnet of the VPC.

In FRRouting, I need one of configurations, "network <ip address> area <area-id>" and "ip ospf area <area-id>". In my case, I used "network <ip address> area <area-id>".

2. Multicast for OSPFv2

Have you ever heard about the multicast packet for OSPFv2? It is necessary factor to establish the connection.

On the same broadcast domain, I can see the both packets from the sender. However, I can not see all of things over AWS VPC network. It look like below

AWS does not support multicast default.

2. Enable the multicast feature for AWS VPC

Recently, AWS improve their feature of VPC with transit gateway. In this instruction, AWS show how to enable the multicast, even if there is limitation.

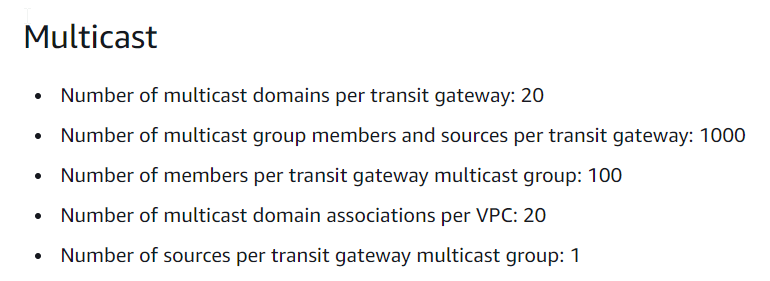

It is only 1 multicast source is possible. Because of this, I can not make success to establish OSPFv2 default. I need to request increase the quota.

2-1. Create transit gateway with Multicast

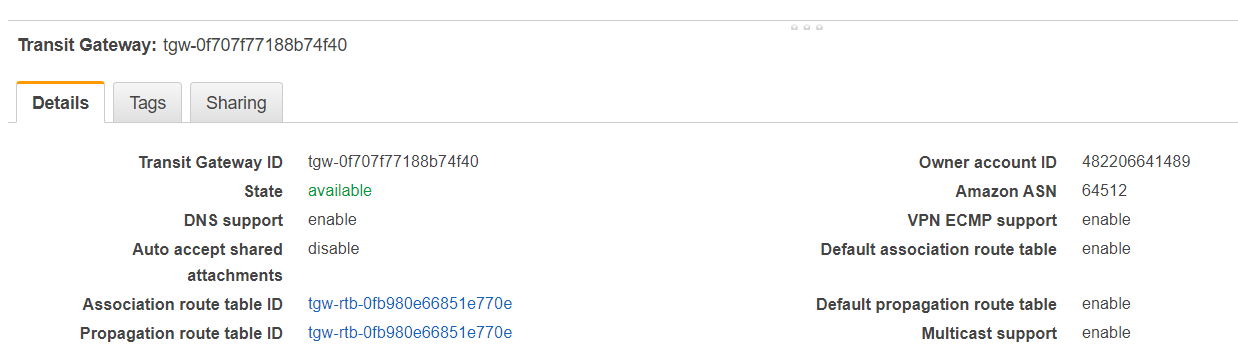

The below is the result of creation. There is "Multicast support" option. (Please note that this feature is not opened on all of the regions, In my case, I use Virginia region.)

2-2. Attach the VPC to Transit Gateway.

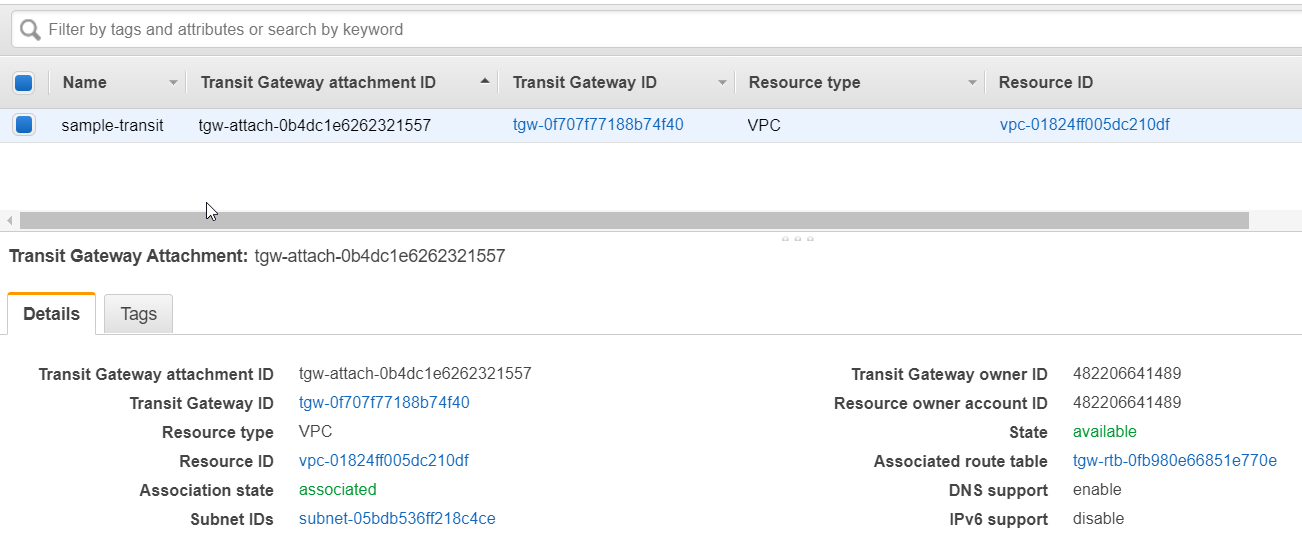

I need to attach the transit gateway with mulitcast domain to the VPC.

2-3. Associate the subnet in VPC to the transit Gateway.

I have to assign the subnet which make multicast work to multicast domain. This multicast domain is created by transit gateway.

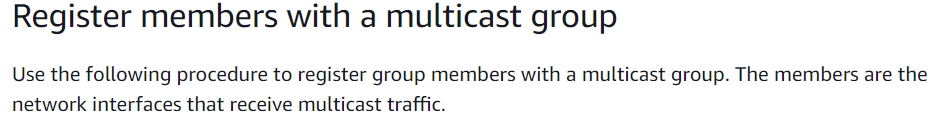

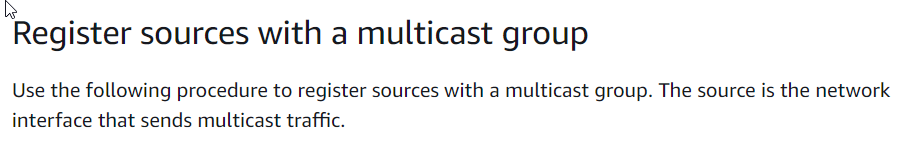

2-4. Register the source and member for multicast.

The definition of the source and memeber is below.

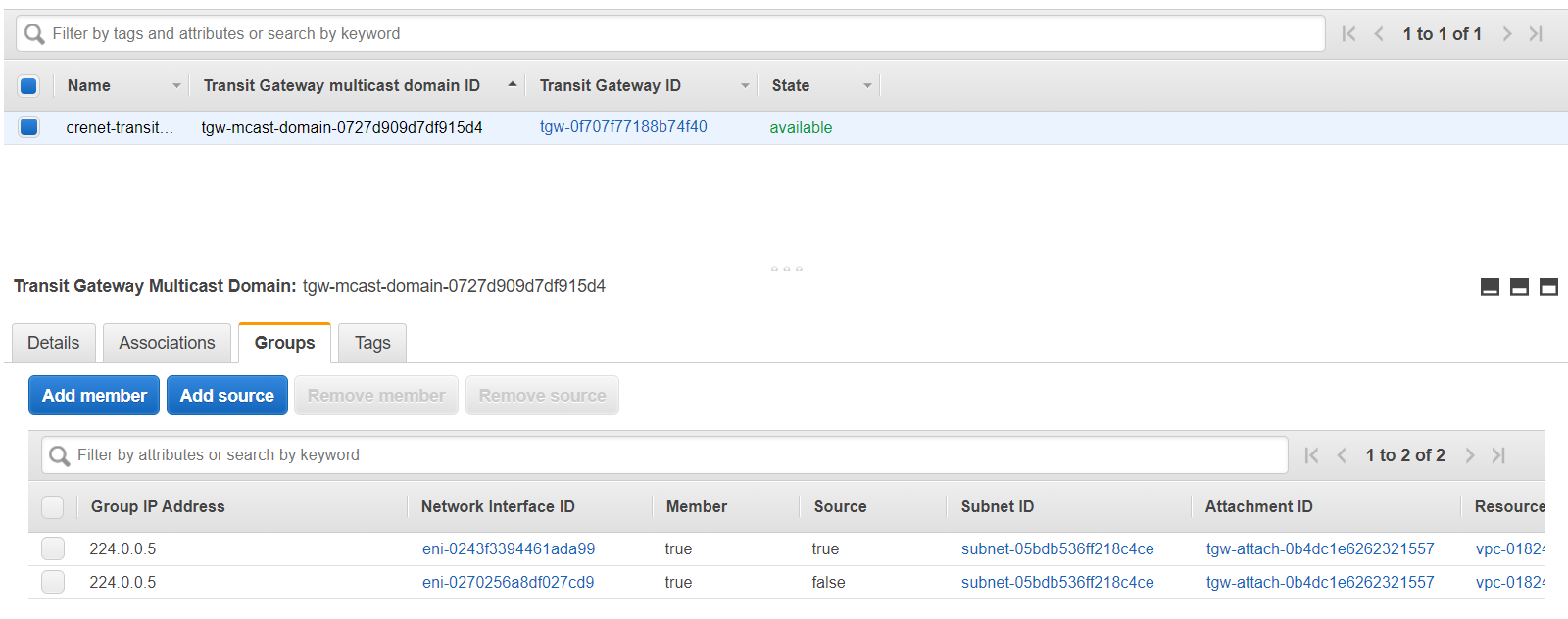

For the OSPFv2, each host should be source and member. Thus I need 2 source and 2 member. However, I can not make 2 source at this time by limitation of AWS

"224.0.0.5" is the Multicast Group Address for OSPFv2.

3. The result after enabling Multicast

Even if the multicast does not activate fully. I can verify the multicast effect. Host #1 is source and member. Host #2 is only member. Thus Host #2 can not transfer the mulitcast over VPC network.

This is the what I learned from the Test.

Reference

[ 1 ] https://docs.aws.amazon.com/vpc/latest/tgw/working-with-multicast.html

[ 2 ] https://docs.aws.amazon.com/vpc/latest/tgw/transit-gateway-quotas.html

[ 3 ] https://docs.aws.amazon.com/vpc/latest/tgw/tgw-multicast-overview.html

How to use AWS AppStream 2.0?

Have you ever used "Google Docs"? In this case, there is no host like PC. AppStream make like this. I can access my application from outside, such as Internet. AppStream has some advantage and disadvantage. It is simple to access and manage. Also it is more secure. Because the user can not do other things on this host. However, It is not easy to deploy with right size, even if AWS offer auto-scaling. I need to how much use can be used at the same time. Most of this post are referenced by this.

1. Create Image

AppStream is auto-scaling system. Thus, I need customized standard image to deploy.  In this image, I can install my application. It will be deployed. Please note that I will set this instance to create image over the subnet which can communicate with Internet, however the real-instance can be located over the private subnet which can not communicate with Internet. In Images, there are 2 category, Image Registry and Image Builder. At the first, I will select Image Builder to create my image which is installed for terminal. Launch Image Builder.

Now, I need to select basic OS to create my image. In my case, I will choose Windows 2012 R2, which is named wit "Base-Image-Builder-06-12-2018". Please note this image can be different by the AWS Region.

Insert the image name and select the type for CPU and Memory. These parameters can not changed after first creation. Thus, I need another images when I need other size of instance.

Select the network which the instance attach to. Please note that this is the network only for image creation. When the real-system is deployed, I can define the network. I will touch at the next time. In this case, I need to download terminal tools from Internet. Thus, this instance will be located over the subnet which can communicate with Internet.

Review and Launch.

2. Connect Image

Now, I need to install my application on the launched image. After status change from Pending to Running, I can connect this image.

After connect, I can see the screen like below. I need to select user to login. At this time, I will select "Administrator" at the first.

Now, I can see the windows which is login with "Administrator" account. Open the CMD and Run "ipconfig" to see the network interface information. There are 2 interface. "11.8.48.79" is interface which is one of VPC subnet network. "198.19.168.187" is the interface which offer the display for users. "198.19.168.187" interface is controlled by AWS managed. Most of traffic is pass through the "11.8.48.79" interface. I can download some files from this interface.

On the desktop, there is firefox. Open this and write "https://www.putty.org/". In my case, I will download "Putty" for the sample application.

After download the file, (Default, the downloaded file will be located in documents directory), Install this application.

Please remember the installation path for the next step. In this case, the putty is installed under "C:\Programs". After installation, close all of windows. In the desktop, I can see the "Image Assistant". This application help me to register my application for the AWS AppStream.

AppStream 2.0 Image Assistant application should be run. Follow the step by this application.

3. AppStream 2.0 Image Assistant.

I need to register my application for AppStream 2.0. Click "Add App", Find out the running file.

"App Launch Setting" menu is opened. In this instruction, there are more information about this. "Launch Parameters" and "Working Directory" are depend on my application. In this case, I will leave blank.. Just click "Save"

Click "Next"

This is important step. In this part, I can customize my application. I need to re-login with Template User. In this mode, I can define my application how to work. Click "Switch User"

Select "Template User"

After login, I can change OS configuration and Application settings. In my case, I will register sample session information. "my-sample" session information is updated over my application.

Also, I can run this application with what I want to do. I open SSH to my sample host.

I have done all of things. In the desktop, there is Images Assistant is located. Run it. And back to main with Administrator account.

Select "Administrator" and login again.

After login, I can see "Save settings" button activated. Click this button and click "Next"

Now, I have to verify if this application work correctly. I will switch user with "user" account.

Select "Test User"

After login, I can run "Putty" again. And I can confirm that "my-sample" session in configuration is remained.

Run "Images Assistant" in the desktop, and go back to main with "Administrator" account.

Select "Administrator" again.

Now, I am ready to finish. Launch.

After complete to launch, click continue.

Fill with image name.

Review and Create Image.

The viewer will be disconnected. And the building image will be started.

It will take about 10~20 minutes. And then, I can see the my image on AWS console.

4. Snapshotting Image.

During the time, I can see the AWS console to check the status. In the "Image Registry", there is "image" which is creating.

In "Image Builder", my based image has the status "Snapshotting". Please note that I can not do any action in this "Snapshotting" status.

I can expect that "Snapshotted image" is registered in Image Registry.

5. Delete Image in "Image Builder" (Optional)

There is no relationship between image in registry and image in builder. So, I can delete and remove this image in the builder. If you have change to make another type of image include configuration, I will remain this image. However, this is not necessary in this post. I also show the relationship between them.

After the status is "Stopped", I can delete this image.

6. Create fleet.

I have a image which I want to deploy. I need to define the network to deploy. The fleet has this kinds of role. Create Fleet.

Insert Name for this fleet.

I can see my image which has been created. Select the image and Next.

From here, network and security, capacity for scaling are defined. Select type of CPU and RAM for this instance. This is not changeable. If I want to change, I need to create another fleet. In fleet type, there are 2 modes, "On-Demand" and "Always-on". I want to save my money, so I will select "On-Demand"

Maximum session duration means "User can stay during this time once". Disconnect timeout means "After session finish, this instance can not re-assign to other user until this time spent". Minimum and Maximum capacity define the number of con-current session. AppStream offer auto-scaling, however, it take 10~20 minutes. It is too long, therefore, I need to define with proper number. In Scaling detail, this is the parameters to scale-out.

In here, the nework and security group is defined. I can locate AppStream instance into the subnet which does not communicate with Internet. In image builder step, I located at the subnet which communicate with Internet.

Review and Create.

Now I have a fleet.

7. Create Stack and Connect with Fleet

Stack has the role to define "User Pattern". Create Stack

Insert Name

I can define if I use Home Folders for each sessions. In my case, I do not want that the user remain their files on the instance. Because this instance will be shared with others. Default, it is enabled. However, I disable the option.

I can also user behavior such as "Copy and Pasts" usages. Just define what you want.

Review and Create.

After creation of stack, I need to associate fleet. In Actions, there is "Associate Fleet".

Select the fleet which is created before,

And confirm the stack details. If you want to remove fleet, you have to dis-associate this relationship at first.

8. Create User Pool.

In workspace, I need AD system. Fortunately AppStream offer this feature through AWS console. Create User.

Insert information for user. The Email address should be correct. The access link, account and temporary password are sent to this email address.

After creation of user, I need to associate with stack. I associate with the stack already created.

Select the stack.

Look at the details, I will resend welcom email which is include access link.

I will received this email.

9. Accessing and Login the AppStream.

Click the Link which is include in email. New windows is opened like below.

After first login, I need to change my password.

Re-login and I can see like below. I registered the putty application only. Therefore, Putty Icon is appeared.

I can see the my application opened.

This is the AWS AppStream, I hope this post help you!

10. Troubleshooting

10-1. Remote User.

In the AWS console, I can not delete the user. It is only possible with API. I will use awscli command.

10-2. Delete S3 bucket

AppStream can save Home folders and Application configuration in S3 bucket. This bucket will be created automatically. When I delete this S3 bucket, I can not make success. Because there are some limitation to protect S3 bucket. So I have to change this part at the first to remove.

After clear in Bucket Policy, I can remote this bucket.

Reference

[ 1 ] https://docs.aws.amazon.com/appstream2/latest/developerguide/tutorial-image-builder.html

[ 2 ] https://d1.awsstatic.com/product-marketing/AppStream2.0/Amazon%20AppStream%202.0%20Getting%20Started%20Guide%20April%202018.pdf

[ 3 ] https://docs.aws.amazon.com/appstream2/latest/developerguide/managing-network.html

[ 4 ] https://docs.aws.amazon.com/cli/latest/reference/appstream/delete-user.html

How to use AWS workspace?

Recently, I have some chance to do simple test for AWS workspace. Deploy is not difficult. However, there are some necessary factor to do best architecture.

1. Pre-requsite.

The AD system should be necessary, For this post, I will use AWS managed Microsoft AD service. I write a post which explain how to configure it. In directories, I can see the "Registered" directory.

2. Install and Configure for AWS workspace.

Launch Workspace at first.

Select the directory which I have create already. This directory offer user management service.

Select the user which I want to use. In my case, I will use AWS managed AD service. I have already created "crenetadmin" user in AD. Please note that, User information required First, Last name and E-mail address. (Please note a user can be assigned for single workspace only. I need other user for secondary worksapce.)

Select the OS type. In my case, I will select "Standard with WIndows 10".

Select "Running Mode", I will select "AutoStop" mode., which make the instance stopped when no usage is happend.

Review and Launch it.

3. Login and Run the AWS workspace.

In the detail after launching, I can see the client link "https://clients.amazonworkspaces.com/". From this, I can download client program. Also, weblogin is possible.

I have to remember the "Registration Code". Click "Web Access Login", and then I can see the Registration page.

On this page, I will insert Registration code.

If I meet this error message, I need client downloaded.

After download and Installation of AWS workspace client, I can see the I-con over desktop and I run it.

At the beginning, I can see the field to insert "Registration code". However, aT the left corner of the top, there are configuration button. Under this button, I can see "Manage Registrations". After Registration, I can see the login step.

With the username and password which are registered on AWS managed AD service. I can pass the next step. Select what I want.

Now, I can use workspace.

4. Troubleshooting and Deep-dive for AWS workspace.

However, this is so strange. I have not defined any network and security information. Look at the network interface information.

This is other case. In this case, 11.5.80.110 is assigned.

There are 2 interface. "11.5.64.253" is the one of VPC network and "198.19.113.72" is new network which I have not known.

And I try to send ICMP packets, one is for internet connection and the other is for internal connection. I will explain why this kinds of situation is happened. During the creation of the AWS managed Microsoft AD from this post, I selected 2 subnets. At this time, I selected subnets which is not possible for outbund traffic. Thus IP address for this workspace is assigned by this subnets. "11.5.64.253" is the one of IP address which the directory service have. "198.19.113.72" is the secondary IP address, which make connection from the user with client and weblogin. Therefore, I need to consider this properties to architecture for this service.

5. Security and Service Port

If you are use the internet network to access this workspace, it does not matter. However, if you are inside of the company, sometimes you need to open the firewall security policy for this service. you make huge trouble. It is not easy. Please refer this link https://docs.aws.amazon.com/ko_kr/workspaces/latest/adminguide/workspaces-port-requirements.html

Reference

[ 1 ] http://createnetech.tistory.com/27

[ 2 ] https://docs.aws.amazon.com/ko_kr/workspaces/latest/adminguide/workspaces-port-requirements.html

AWS Region ICMP and Inter Ability-Zone (AZ) Latency time estimation.

1. 2018. 11. 22

AWS_Region_ICMP.xlsx

AWS_InterAZ_ICMP.xlsx

How to Install AWS JAVA SDK in Ubuntu 16.04

In this post, I write the installation for AWS JAVA SDK. I followed this documentation

1. Install the latest Oracle JAVA JDK.

I need to download "Oracle JAVA JDK" from here. I will install the JDK. JDK includes the JRE. In my case, I create "javase" directory where I download and extract downloaded file on. And I used "wget" command with options "--no-check-certificate" to obtain from download link.

The extracted files are not for installation. They are the files to run and use. Therefore, I need to edit my ".bashrc". In my case, "java" and "javac" files are located in "/home/ubuntu/javase/jdk-10.0.2/bin".

Now, I can use the Oracle JDK. "java --version" show the version information.

And I also create sample code, "sample.java", in different directory. In my case, I create another directory which name is "projects". I write like below.

And compile and run the sample code, "javac -d . Sample.java". I used option "-d" because I defined the package in the sample code. After compile, I can confirm "Sample.class" file is located on that directory. And Run it.

Now, I can do JAVA programming.

2. Set up for the AWS SDK.

I still can not use the AWS SDK, now. In this part, I will follow some instruction to setup for the AWS SDK. In this documentation, I need to choose builder, In my case I select "Apache Maven". To use the SDK with Apache Maven, I need to have Maven installed.

2-1. Download, Install and Run Maven

I follow in this documentation. I make directory for Maven, And Download and extract it.

In my case, "bin" is located in "/home/ubuntu/apache-maven/apache-maven-3.5.4/bin". I will add this path in my ".bashrc" file.

Now, I can confirm the version for marven with "mvn -v" command

I think I prepare to use this. I will follow the rest of the instructions.

2-2. Create a new Maven package

In this documentation, it shows Maven Archetype. I think this is similar with "create projects" of other program languages.

After run command above, I can see the "app" directory. In this directory, "pom.xml" and "src" directory are located. And I also can confirm there is "App.java" file under "/src/main/java/com/sample/myapps". To use the AWS SDK for Java in my project, I need to declare it in "pom.xml" file. In my case, I want to entire AWS SDK. Therefore I will add like below. (I can see the latest version in this document)

Now, I configure to use AWS entire SDK. I can build if my configuration is correct or not with "mvn package". This command is for building the project.

After run command, I can see the AWS SDK downloaded. Please, note, you can meet some error "Source option 5 is no longer supported. Use 6 or later." and build fail. I solved this issue with adding

So far, I use profile for Credentials. And I use the static method for Region. I am some question for this. Is there anyway to use the profile for this Region field. "AwsProfileRegionProvider;" class offer it.

So, Now, I can get the information about credential and reason with the profile. Please, note, I have define the information on "credentials" and "config". I need to add some Environment like below.

If I am necessary, I can add these over my ".bashrc" file. Now, Enjoy the JAVA coding.

Reference

[ 1 ] https://docs.aws.amazon.com/sdk-for-java/v1/developer-guide/setup-install.html

[ 2 ] https://docs.aws.amazon.com/sdk-for-java/v1/developer-guide/setup-project-maven.html

[ 3 ] https://maven.apache.org/index.html

[ 4 ] http://maven.apache.org/archetypes/maven-archetype-quickstart/

[ 5 ] https://mvnrepository.com/artifact/com.amazonaws/aws-java-sdk-bom

[ 6 ] https://github.com/spring-guides/gs-maven/issues/21

[ 7 ] https://docs.aws.amazon.com/sdk-for-java/v1/developer-guide/credentials.html

[ 8 ] https://docs.aws.amazon.com/sdk-for-java/v1/developer-guide/setup-credentials.html

[ 9 ] https://stackoverflow.com/questions/19850956/maven-java-the-parameters-mainclass-for-goal-org-codehaus-mojoexec-maven-p

[ 10 ] https://docs.aws.amazon.com/AWSJavaSDK/latest/javadoc/index.html?com/amazonaws/auth/profile/ProfileCredentialsProvider.html

How to Upload Object into S3 with multipart-upload using S3 API CLI

In this post, I will reproduce how to upload object with multipart. I can use the "awscli s3api" command for this. Before I study, I though AWS did all of process such as split, upload and resemble. However, it is not. (I am not sure if SDK can do all of these). I will write from split to complete multipart-upload.

1. Split object

Before upload object, I need to split object by the size which I want to upload. In my case, I define almost 40MB. And "split" command is used to split object by specific size. "split -b 40000000 sample/TWICE「BDZ」Music\ Video.mp4 splited" means that the "sample/TWICE「BDZ」Music\ Video.mp4" file will be splite by the size and the splited file names are prefixed with "splited". Therefore, I can see the 2 file which splited.

I will upload these files with multipart-upload.

2. Create Multipart-Upload

There are several stpes to use multipart-upload. At first, I create multi-part upload. This step will notice to S3 that I have something with large size to upload.

After run this command, I can get "UploadId". Please note this value. This value will be used for next steps.

3. Upload-part

So far, any file is not uploaded. I need to upload these splited files with upload-part command. In this command, there are 2 options which I need to focus. They are "upload-id" and "part-number". "upload-id" is kind of the credential. "part-number" is the sequential value to assemble at end of process.

I uploaded 2 files into S3. However, I can not see the S3 GUI. Because it is not completed object yet. So I need to finish this process.

4. Create "multipart" file

I have some questions. How does AWS know the order to assemble to make single object. I have already known there is part-number. However, this information is only used to mark this object. AWS can not know what is the begining and last. Because of this, I need to create "multipart" file to define single object. In this manual, there is format for this file.

Now, I am ready to finish these multipart upload.

5. Complete multipart upload

I will run command "complet-multipart-upload" to finish all of process.

Now, I can see this object on S3 GUI. Look at the "ETag", there is "-2". This means the object are uploaded with multipart-uplad and the splited objects was 2. This is the reason why the "ETag" of some objects is not matched.

Reference

[ 1 ] https://docs.aws.amazon.com/cli/latest/reference/s3api/index.html

[ 2 ] https://www.computerhope.com/unix/usplit.htm
